Part number 6151908072

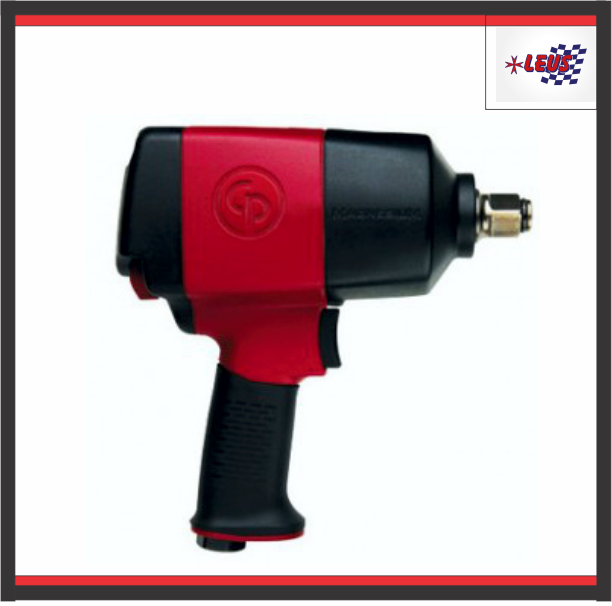

Model CP8072
Discontinued Discontinued
Handle type Pistol
Square drive 3/4″
Working Torque Range (fwd) 135-1300 Nm
Maximum Torque (fwd) 1650 Nm
Maximum Torque (reverse) 1650 Nm
Free speed 6500 rpm
Blows per minute 850
Net weight 4.85 kg
Power/weight ratio 340.2 Nm/kg
Length 230 mm
Actual air consumption 17 l/s
Noise level 94 db(A)
Sound Power 105 db(A)
Vibration (ISO-8662-7) 3.9 m/s²
Vibration α (ISO-28927-2) 11.9 m/s²
Vibration K (ISO-28927-2) 5.3 m/s²
Socket retainer Friction ring
Clutch type Twin hammer
